France Identité OID4VCI Android Integration¶

Table of Contents¶

• Overview
• Architecture Overview
• Cryptographic Material Reference
• Key Inventory
• Nonce Reference
• Issuer Metadata
• Base URL and Environments
• Flow Overview
• Sequence Diagram
• Step Summary
• Step 1 — Deeplink Invocation
• Step 2 — Credential Manager Request
• Step 3 — Challenge Request
• Step 4 — Token Request
• Step 5 — Nonce Request
• Step 6 — Credential Request
• Error Handling
• Security Considerations
• Android Integration Notes
• Out of Scope
• Playground Trace Examples
• Playground Certificates
• References

Overview¶

This document is addressed to teams implementing an Android wallet that integrates with the France Identité app to receive an age verification credential using the OpenID for Verifiable Credential Issuance (OpenID4VCI) 1.0 protocol and Android Credential Manager.

The calling wallet plays two consecutive roles in this flow:

1. Initiator — it launches the France Identité app via a deeplink, which triggers authentication and credential offer retrieval on the France Identité side.
2. Credential Manager provider — it is registered as a Digital Credential provider in Android Credential Manager. Once France Identité passes the credential request to Credential Manager and the user selects this wallet in the chooser, the wallet receives the request and performs the OID4VCI network exchanges.

The wallet performs four sequential network exchanges with the issuer: Challenge, Token, Nonce, and Credential. The Token and Credential exchanges use DPoP (Demonstrating Proof of Possession, RFC 9449). The Token exchange additionally requires a Client Attestation proving the wallet's identity.

Architecture Overview¶

Actors¶

Cryptographic Material Reference¶

A single issuance session involves multiple key pairs and nonces. This section maps each piece of cryptographic material to where it originates and where it is used, to prevent confusion before reading the step-by-step detail.

Key Inventory¶

The Ephemeral Session Key and the Credential Binding Key are distinct key pairs and must never be the same key. The Ephemeral Session Key is represented as a JWK in DPoP and Client Attestation material, then discarded after the session. The Credential Binding Key persists and is bound to the mdoc credential as a COSE_Key. For the attestation and android_keystore_attestation proof types, the attested key is the Credential Binding Key, not the Ephemeral Session Key.

Nonce Reference¶

Four distinct nonce values flow through a session. Each originates from a different response and is consumed in a different place.

attestation_challenge and the first DPoP nonce are returned for the same stage but serve entirely different purposes. Do not derive one from the other or reuse one in place of the other.

Issuer Metadata¶

Before initiating any exchange, the wallet retrieves the issuer's metadata from the well-known discovery endpoint. This document contains the URLs for all subsequent requests and the embedded JWKS needed to encrypt the credential request.

Discovery Endpoint URL Construction¶

In OID4VCI 1.0, when the issuer identifier contains a path component, the /.well-known/openid-credential-issuer segment is inserted between the host and the path, not appended at the end.

https://{fqdn}/.well-known/openid-credential-issuer/{path}

Request¶

GET /.well-known/openid-credential-issuer/{path} HTTP/1.1

Response Format¶

The server returns a signed JWT (Content-Type: application/jwt). The wallet MUST verify the JWT signature and claims before trusting the payload.

HTTP/1.1 200 OK
Content-Type: application/jwt

<signed_jwt>

The JWT payload contains the metadata claims. Example decoded payload:

{
  "iss": "{credential_issuer}",
  "sub": "{credential_issuer}",
  "iat": <unix_timestamp>,
  "credential_issuer": "{credential_issuer}",
  "credential_endpoint": "{credential_issuer}/credential",
  "token_endpoint": "{credential_issuer}/token",
  "challenge_endpoint": "{credential_issuer}/challenge",
  "nonce_endpoint": "{credential_issuer}/nonce",
  "credential_request_encryption": {
    "encryption_required": true,
    "jwks": {
      "keys": [
        {
          "kty": "EC",
          "crv": "P-256",
          "alg": "ECDH-ES",
          "use": "enc",
          "kid": "<kid>",
          "x": "<x_coordinate>",
          "y": "<y_coordinate>"
        }
      ]
    },
    "enc_values_supported": ["A256GCM"]
  },
  "credential_response_encryption": {
    "encryption_required": false,
    "alg_values_supported": ["ECDH-ES"],
    "enc_values_supported": ["A256GCM"]
  },
  "credential_configurations_supported": {
    "eu.europa.ec.av.1": {
      "format": "mso_mdoc",
      "doctype": "eu.europa.ec.av.1",
      "cryptographic_binding_methods_supported": ["cose_key"],
      "credential_signing_alg_values_supported": [-9],
      "proof_types_supported": {
        "android_keystore_attestation": {
          "attestations_required": {},
          "x509_signature_algorithm_oids_supported": [
            "1.2.840.10045.4.3.2",
            "1.2.840.113549.1.1.11"
          ]
        },
        "attestation": {
          "key_attestations_required": {
            "key_storage": [
              "iso_18045_high",
              "iso_18045_moderate",
              "iso_18045_enhanced",
              "iso_18045_basic"
            ]
          },
          "proof_signing_alg_values_supported": [
            "ES256"
          ]
        },
        "jwt": {
          "key_attestations_required": {},
          "proof_signing_alg_values_supported": [
            "ES256"
          ]
        }
      }
    }
  }
}

Metadata Notes¶

x509_signature_algorithm_oids_supported. The two OIDs in the android_keystore_attestation proof type describe which signature algorithms are accepted in the attestation certificate chain: 1.2.840.10045.4.3.2 is ecdsa-with-SHA256, 1.2.840.113549.1.1.11 is sha256WithRSAEncryption.

Metadata JWT Validation¶

Before using the decoded metadata, the wallet MUST:

1. Verify the metadata JWT header is explicitly typed as openidvci-issuer-metadata+jwt.
2. Validate the JWT signature using the x5c certificate chain in the JWT header and the configured trust anchor for the France Identité environment.
3. Verify iss, sub, and credential_issuer match the expected issuer identifier.
4. Verify the metadata is fresh enough for local policy using iat and any cache policy.

Relevant Fields¶

Base URL and Environments¶

All network exchanges in Steps 3–6 are relative to a common base URL.

All request examples in this document use the placeholder {issuer_base_url}. Substitute the appropriate environment value before making requests.

Flow Overview¶

Sequence Diagram¶

sequenceDiagram
    participant FIA as France Identité App
    participant ACM as Android CredentialManager
    participant CWA as Calling Wallet App
    participant CWB as Calling Wallet Backend
    participant FI as France Identité Backend / Issuer

    CWA->>FIA: Deeplink
    FIA->>ACM: CredentialManager request
    ACM->>CWA: Wallet chooser + credential request data
    CWA->>FI: Challenge Request
    FI->>CWA: Challenge Response (attestation_challenge + DPoP nonce)
    CWA->>CWB: Client Attestation Request (with attestation_challenge)
    CWB->>CWA: Client Attestation Response (client_attestation JWT)
    CWA->>CWA: Build DPoP JWT (nonce = DPoP nonce) + Client Attestation PoP JWT (challenge = attestation_challenge)
    CWA->>FI: Token Request (DPoP + OAuth-Client-Attestation + OAuth-Client-Attestation-PoP + pre-authorized_code)
    FI->>CWA: Token Response (access_token, token_type: DPoP)
    CWA->>FI: Nonce Request
    FI->>CWA: Nonce Response (c_nonce + DPoP nonce)
    CWA->>CWA: Build DPoP JWT (nonce = DPoP nonce) + credential proof (nonce = c_nonce) + encrypt request JWE
    CWA->>FI: Credential Request (Authorization: DPoP + DPoP header + encrypted JWE body)
    FI->>CWA: Credential Response (encrypted JWE)
    CWA->>CWA: Decrypt credential response JWE

Step Summary¶

Step 1 — Deeplink Invocation¶

The calling wallet application launches the France Identité app using a deeplink. The flow is never initiated from the France Identité app itself.

Deeplink Format¶

https://idp.france-identite.gouv.fr/credentials-request#<parameters>

Deeplink Parameters¶

Example¶

https://idp.france-identite.gouv.fr/credentials-request#wallet_name=MyWallet&credential_type=eu.europa.ec.av.1&credential_format=mso_mdoc

Step 2 — Credential Manager Request¶

After receiving the deeplink, the France Identité app guides the user through an authentication process, obtains a credential offer from the backend, and passes the issuance request to Android Credential Manager.

User Flow¶

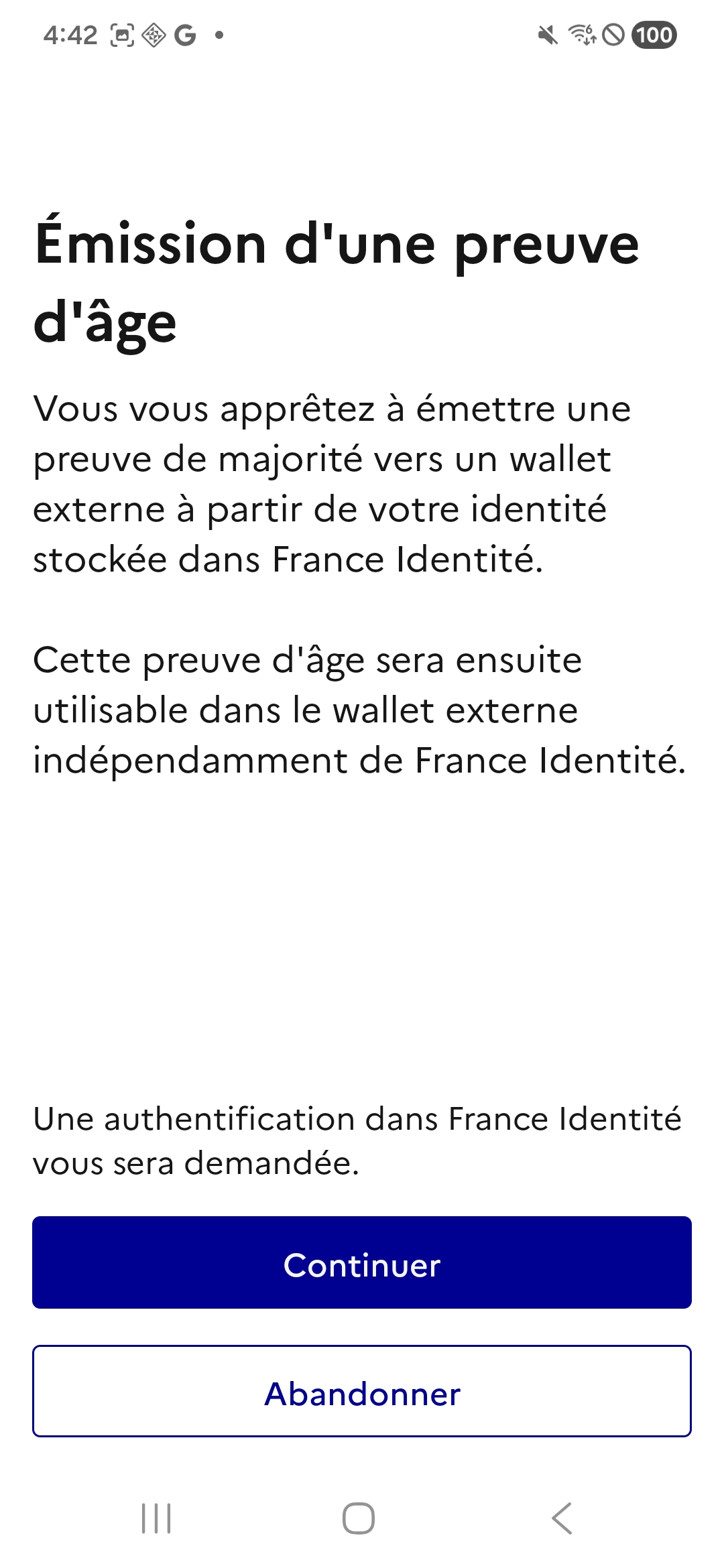

The user is presented with an explanation of the process.

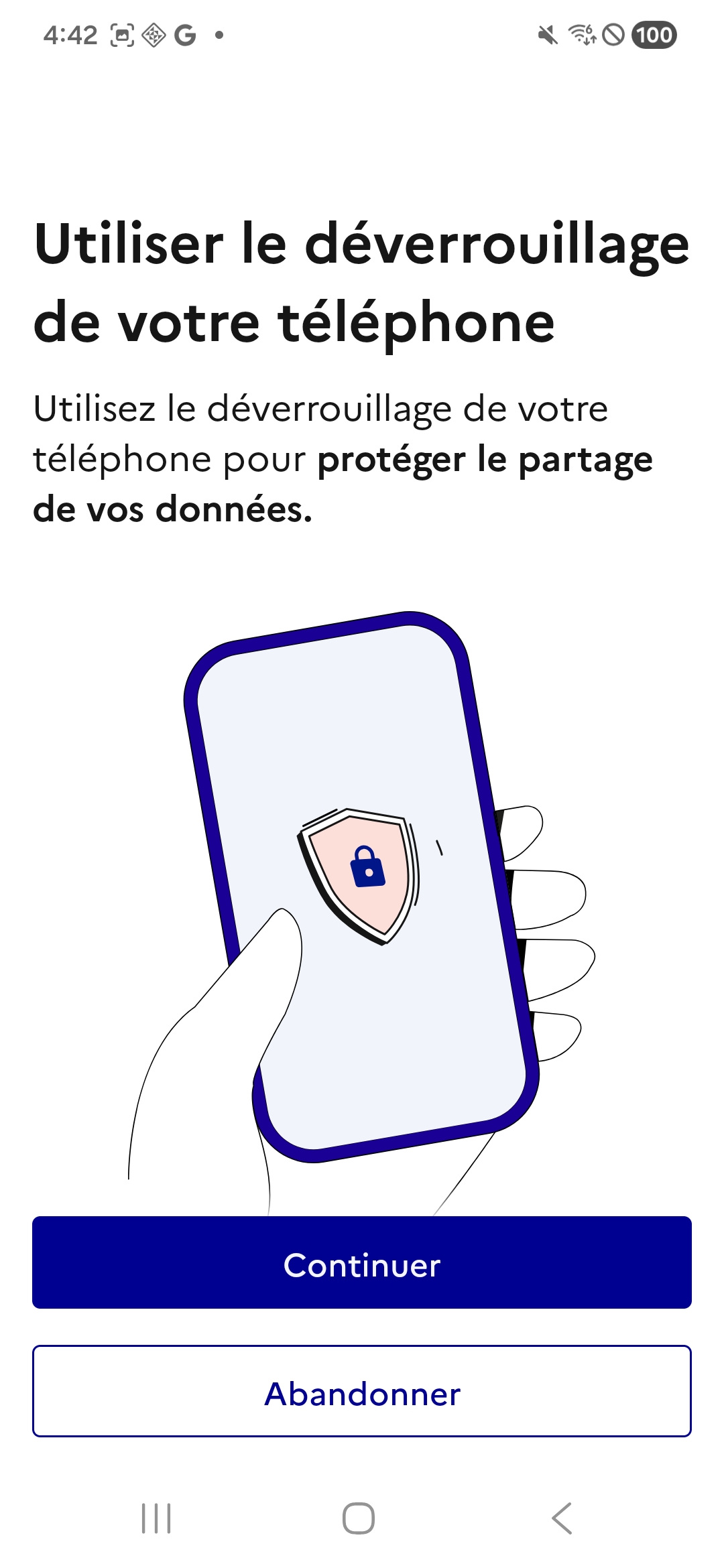

The user authenticates and authorises the France Identité backend to provision the requested credential.

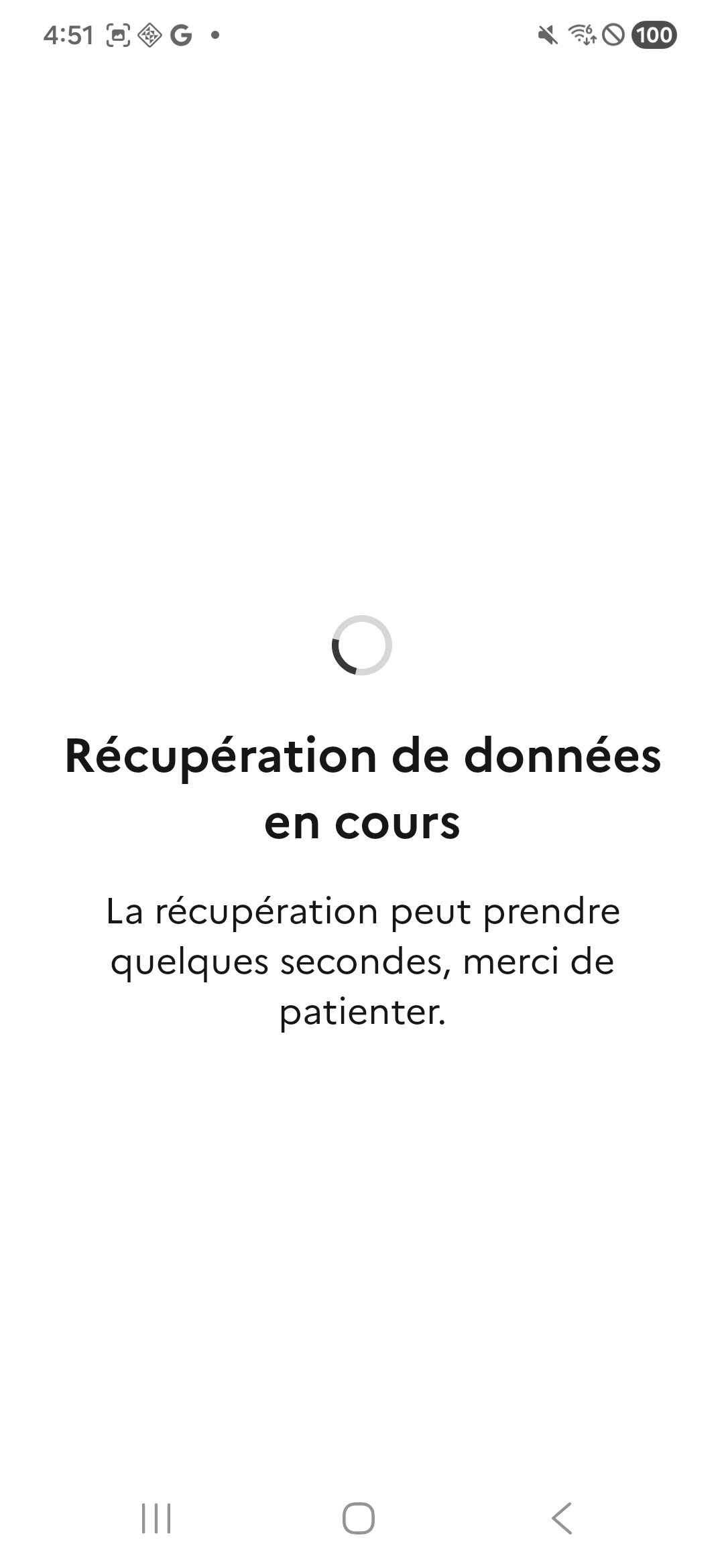

The France Identité app receives the credential offer URL, retrieves the offer, and extracts the pre-authorized_code.

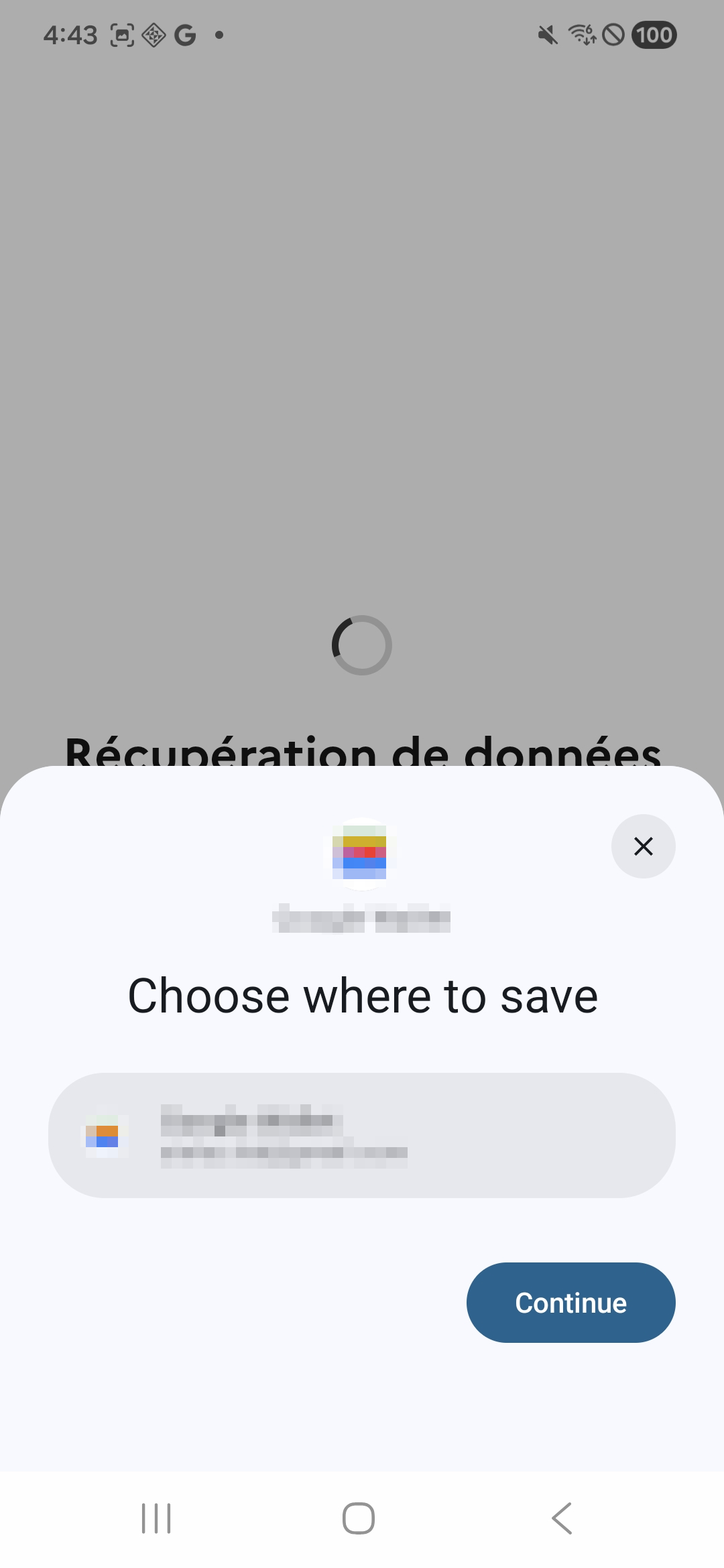

The France Identité app passes the credential request to Android Credential Manager. The selected wallet receives this payload and begins the OID4VCI exchanges.

Credential Manager Provider Registration¶

To appear in the wallet chooser and receive the credential request, the wallet must register as a Digital Credential provider in Android Credential Manager. Refer to the official Android documentation for implementation details:

Android Credential Manager — Digital Credentials provider guide

Once registered, the wallet receives the credential request payload described below when the user selects it in the chooser. The OID4VCI flow (Steps 3–6) is then initiated from within the provider callback.

Credential Request Structure¶

The payload delivered to the wallet through Credential Manager is assembled by the France Identité app. The wallet receives it as-is and must not attempt to modify it.

{
  "requests": [
    {
      "protocol": "openid4vci1.0",
      "data": {
        "credential_issuer": "<credential_issuer>",
        "credential_configuration_ids": [
          "eu.europa.ec.av.1"
        ],
        "grants": {
          "urn:ietf:params:oauth:grant-type:pre-authorized_code": {
            "pre-authorized_code": "<pre-authorized_code>"
          }
        }
      }
    }
  ]
}

Payload Fields¶

Step 3 — Challenge Request¶

The wallet calls the challenge endpoint to obtain the values it needs before building the token request: an attestation_challenge for the Client Attestation PoP and a server-provided DPoP nonce for the token request's DPoP JWT.

Extension: The challenge endpoint is not part of the core OID4VCI 1.0 flow. It exists specifically to support OAuth 2.0 Attestation-Based Client Authentication: the attestation_challenge it returns is the server-generated nonce bound into the OAuth-Client-Attestation-PoP JWT at the token request step.

Request¶

POST {issuer_base_url}/challenge HTTP/1.1

No request body or authentication headers are required.

Response¶

Response Headers¶

HTTP/1.1 200 OK
Content-Type: application/json
DPoP-Nonce: <dpop_nonce>

In some integration traces, intermediary logging does not expose the DPoP-Nonce response header even though the next DPoP proof contains a server-provided nonce. Treat the nonce value as opaque response metadata. Do not reuse attestation_challenge as the DPoP nonce.

Response Body¶

{
  "attestation_challenge": "hEOhASagV4JQ0Uqc0Q5gryefi5ScjgJKWxpqGG-RWEACBR8szWiB9fya-KkGAyEbiWBnxo5XSumw3Zj3eZZpek8j7-DWMOZfPYkAsHFczNzjoikLN3tSc2Lwa0-VEndA"
}

Two nonces, two purposes. attestation_challenge (response body) goes into the Client Attestation PoP. The DPoP nonce goes into the DPoP JWT for the token request. They are independent values.

Step 4 — Token Request¶

The wallet exchanges the pre-authorized_code for a DPoP-bound access token. Beyond the standard OAuth2 parameters, the request carries three security headers: a DPoP proof, a Client Attestation, and a Client Attestation PoP.

Request¶

POST {issuer_base_url}/token HTTP/1.1
Content-Type: application/x-www-form-urlencoded
DPoP: <dpop_jwt>
OAuth-Client-Attestation: <client_attestation_jwt>
OAuth-Client-Attestation-PoP: <client_attestation_pop_jwt>

grant_type=urn%3Aietf%3Aparams%3Aoauth%3Agrant-type%3Apre-authorized_code
&pre-authorized_code=w9HRltH_WKYtHHf2RttR_7U2-YcQ5fX7iokppzyZxZQ

Body Parameters¶

DPoP Header¶

The DPoP header is a signed JWT that binds the token request to the wallet's key pair and to the target endpoint. A fresh DPoP JWT MUST be generated for each request.

JWT Header¶

{
  "typ": "dpop+jwt",
  "alg": "ES256",
  "jwk": {
    "kty": "EC",
    "crv": "P-256",
    "kid": "<wallet_key_id>",
    "x": "<x_coordinate>",
    "y": "<y_coordinate>"
  }
}

The jwk field contains the Ephemeral Session Key public key. The corresponding private key signs the JWT.

JWT Payload¶

Standard DPoP proof JWT claims (htm, htu, iat, jti) are defined in RFC 9449 §4.2. The integration-specific claim is:

{
  "htm": "POST",
  "htu": "{issuer_base_url}/token",
  "iat": <unix_timestamp>,
  "nonce": "<dpop_nonce>",
  "jti": "<unique_identifier>"
}

OAuth-Client-Attestation Header¶

The OAuth-Client-Attestation header contains a JWT issued by the wallet backend. It attests to the wallet application's identity and binds the attestation to the Ephemeral Session Key via cnf.jwk. The wallet presents this JWT as received from its backend — it does not generate it itself.

JWT Header¶

{
  "typ": "oauth-client-attestation+jwt",
  "alg": "ES256",
  "x5c": ["<leaf_certificate>", "<intermediate_certificate>", "<root_certificate>"]
}

The x5c array contains the certificate chain used to verify the attestation signature, from leaf to root.

JWT Payload¶

{
  "sub": "<client_id>",
  "wallet_name": "<wallet_display_name>",
  "wallet_link": "<wallet_store_or_info_url>",
  "iss": "Android Keystore",
  "cnf": {
    "jwk": {
      "kty": "EC",
      "crv": "P-256",
      "kid": "<wallet_key_id>",
      "x": "<x_coordinate>",
      "y": "<y_coordinate>"
    }
  },
  "iat": <unix_timestamp>,
  "exp": <unix_timestamp>
}

OAuth-Client-Attestation-PoP Header¶

The OAuth-Client-Attestation-PoP header is a JWT signed by the Ephemeral Session Key private key. It proves possession of the key referenced in the Client Attestation (cnf.jwk) and ties this attestation to the current issuance session via the attestation_challenge.

JWT Header¶

{
  "typ": "oauth-client-attestation-pop+jwt",
  "alg": "ES256",
  "jwk": {
    "kty": "EC",
    "crv": "P-256",
    "kid": "<wallet_key_id>",
    "x": "<x_coordinate>",
    "y": "<y_coordinate>"
  }
}

JWT Payload¶

{
  "iss": "<client_id>",
  "aud": "{credential_issuer}",
  "challenge": "<attestation_challenge>",
  "iat": <unix_timestamp>,
  "exp": <unix_timestamp>,
  "jti": "<unique_identifier>"
}

Response¶

{
  "access_token": "yRP5dc9cdfx4c_Ne8DZP9Uj4htaxUWJ05EFMFRWHIxA",
  "expires_in": 896,
  "token_type": "DPoP"
}

Note: The token response does not contain a c_nonce. The credential nonce is fetched separately in Step 5.

Step 5 — Nonce Request¶

The wallet fetches a fresh c_nonce from the nonce endpoint. This stage also provides a DPoP nonce for the credential request's DPoP JWT.

Request¶

POST {issuer_base_url}/nonce HTTP/1.1

No request body or authentication headers are required.

Response¶

Response Headers¶

HTTP/1.1 200 OK
Content-Type: application/json
DPoP-Nonce: <dpop_nonce>

As with Step 3, do not derive the DPoP nonce from c_nonce. They are separate opaque values even if a trace or proxy records only the JSON body.

Response Body¶

{
  "c_nonce": "hEOhASagV4JQ_PV8-80xj556CJFQG4QEpBpqGG-RWECI21HpF8kSeufcFhLckHU7i7eE65ixQvgnTDjLPhnXA1n6KjLLiF1VtIwUqiLWrSXSBnDLOnz17UfC5nwwqPfV"
}

Two nonces, two purposes. c_nonce (response body) binds the credential proof. The DPoP nonce binds the DPoP JWT. They are independent values, same pattern as Step 3.

Step 6 — Credential Request¶

The wallet submits the credential request to the issuer. Two features distinguish this from a standard OID4VCI credential request:

1. DPoP-bound authorization — uses Authorization: DPoP (not Bearer), with a DPoP JWT that additionally carries an ath (access token hash) claim.
2. Encrypted request body — the credential request JSON is encrypted as a compact JWE using the issuer's public encryption key, and sent with Content-Type: application/jwt.

Request¶

Headers¶

POST {issuer_base_url}/credential HTTP/1.1
Authorization: DPoP <access_token>
DPoP: <dpop_jwt>
Content-Type: application/jwt

DPoP JWT¶

The DPoP JWT for the credential request follows the same structure as the token request, with two differences: the htu points to the credential endpoint, and it includes an additional ath claim.

Header¶

Same structure as the token request DPoP header (see Step 4).

Payload¶

Standard DPoP proof JWT claims (htm, htu, iat, jti) are defined in RFC 9449 §4.2. The integration-specific claims are nonce (Step 5 server-supplied value) and ath (access token binding defined in RFC 9449 §4.3):

{
  "htm": "POST",
  "htu": "{issuer_base_url}/credential",
  "ath": "<base64url(SHA-256(access_token))>",
  "iat": <unix_timestamp>,
  "nonce": "<dpop_nonce>",
  "jti": "<unique_identifier>"
}

Request Body — Encrypted JWE¶

The credential request JSON is encrypted as a compact JWE before transmission. The encryption uses the issuer's public key from credential_request_encryption.jwks in the signed issuer metadata (see Issuer Metadata).

Why encryption? The credential request body contains the wallet's binding public key and the proof JWT. Encrypting it prevents any network intermediary from observing or replaying these values.

Compact JWE Structure¶

Compact serialization is defined in RFC 7516 §3.1:

With ECDH-ES, the Content Encryption Key is derived directly from the key agreement and is never transmitted. The <base64url(Encrypted Key)> segment is always an empty string in the serialized compact JWE.

JWE Header¶

{
  "alg": "ECDH-ES",
  "enc": "A256GCM",
  "kid": "<kid>",
  "cty": "application/json",
  "epk": {
    "kty": "EC",
    "crv": "P-256",
    "x": "<sender_ephemeral_x>",
    "y": "<sender_ephemeral_y>"
  }
}

Issuer Encryption Public Key¶

Read the key from the signed issuer metadata at credential_request_encryption.jwks.keys. Look for the entry with "use": "enc":

{
  "kty": "EC",
  "crv": "P-256",
  "alg": "ECDH-ES",
  "use": "enc",
  "kid": "<kid>",
  "x": "<x_coordinate>",
  "y": "<y_coordinate>"
}

Decrypted Payload — Credential Request JSON¶

The plaintext inside the JWE is an OID4VCI credential request extended with credential_response_encryption. The current OID4VCI 1.0 structure uses proofs, where each proof type maps to an array of proof values:

{
  "format": "mso_mdoc",
  "doctype": "eu.europa.ec.av.1",
  "proofs": {
    "<proof_type>": [
      "<proof_value>"
    ]
  },
  "credential_response_encryption": {
    "jwk": {
      "kty": "EC",
      "crv": "P-256",
      "alg": "ECDH-ES",
      "use": "enc",
      "kid": "<response_encryption_key_id>",
      "x": "<x_coordinate>",
      "y": "<y_coordinate>"
    },
    "alg": "ECDH-ES",
    "enc": "A256GCM"
  }
}

Proof Types¶

The issuer accepts three proof types for eu.europa.ec.av.1. The wallet selects one and includes the corresponding key and value in the proofs object.

Proof Type: jwt¶

Defined in OID4VCI 1.0 Appendix F.1. Refer to the specification for the full structure.

Integration-specific values:

Proof Type: attestation¶

Defined in OID4VCI 1.0 Appendix F.3. Refer to the specification for the full structure.

Integration-specific values:

Proof Type: android_keystore_attestation¶

This proof type is defined by Google's Android Digital Credentials guidance and is accepted by France Identité for this integration. For the official Android structure and validation guidance, see Android credential issuer — Keystore attestation.

{
  "proofs": {
    "android_keystore_attestation": [
      "<android_keystore_attestation_jwt>"
    ]
  }
}

Credential Response Encryption Key¶

Including credential_response_encryption in the request is optional per the issuer metadata (encryption_required: false), but strongly recommended — omitting it means the credential is returned in plaintext, exposing the bound key material to any intermediary.

The wallet generates a fresh EC P-256 key pair for each issuance session. The public key is sent in credential_response_encryption.jwk; the private key is retained in memory to decrypt the response. Discard the private key after decryption.

Example public key:

{
  "kty": "EC",
  "crv": "P-256",
  "alg": "ECDH-ES",
  "use": "enc",
  "kid": "response_encryption_test_key",
  "x": "TtTXFg3Dx0-TdOktImr31-bF12Ev9JIGszduZODq5g8",
  "y": "714EGSZv5ToUKVwq90UTmU8eja8xJI-u9OfU97k4wq4"
}

Response¶

The issuer returns the credential as a compact JWE encrypted with the wallet's credential_response_encryption public key.

HTTP/1.1 200 OK
Content-Type: application/jwt

<compact_jwe_serialization>

Credential Response JWE Header¶

{
  "alg": "ECDH-ES",
  "enc": "A256GCM",
  "kid": "<response_encryption_key_id>",
  "epk": {
    "kty": "EC",
    "crv": "P-256",
    "x": "<issuer_ephemeral_x>",
    "y": "<issuer_ephemeral_y>"
  }
}

The kid matches the key ID the wallet provided in credential_response_encryption.jwk. Decrypt using the corresponding private key.

Decrypted Credential¶

After decryption, the payload contains the issued mso_mdoc credential. For OID4VCI mso_mdoc, the credential value is the base64url-encoded CBOR IssuerSigned structure defined by ISO 18013-5. At issuance time there is no presentation-time DeviceSigned component; the wallet produces DeviceSigned only later during presentation.

Credential Response Payload¶

{
  "credentials": [
    {
      "credential": "<base64url(CBOR IssuerSigned)>"
    }
  ]
}

IssuerSigned Structure¶

IssuerSigned {
  nameSpaces: {
    "eu.europa.ec.av.1": [
      IssuerSignedItem { digestID, random, elementIdentifier: "age_over_18", elementValue: true },
      IssuerSignedItem { digestID, random, elementIdentifier: "age_over_21", elementValue: true },
      IssuerSignedItem { digestID, random, elementIdentifier: "issuing_country", elementValue: "FR" },
      IssuerSignedItem { digestID, random, elementIdentifier: "expiry_date", elementValue: <tdate> }
    ]
  }
  issuerAuth: <COSE_Sign1 containing the MSO>
}

Mobile Security Object (MSO)¶

The MSO is the issuer-signed CBOR structure embedded in issuerAuth. It contains the digest of each data element (allowing selective disclosure during presentation) and the device key binding.

Data Elements¶

The eu.europa.ec.av.1 credential type defines the following data elements:

The wallet MUST parse the actual IssuerSigned.nameSpaces content rather than assuming a fixed set — future versions of the credential profile may add or remove elements.

Each element is individually selectively disclosable during presentation — the wallet can reveal a subset without exposing the others.

The wallet verifies the issuer's COSE_Sign1 signature over the MSO before storing the credential, validates the issuer certificate chain against the France Identité IACA for the current environment, and verifies that deviceKeyInfo.deviceKey matches the submitted Credential Binding Key.

Error Handling¶

Error Response Format¶

All error responses follow the standard OAuth2 JSON envelope (RFC 6749 §5.2):

HTTP/1.1 <status_code>
Content-Type: application/json

{
  "error": "<error_code>",
  "error_description": "<human_readable_description>"
}

Error Codes¶

DPoP Nonce Retry¶

If the server rejects a request with use_dpop_nonce, it means the DPoP JWT's nonce claim is missing or no longer valid. The server includes a fresh DPoP-Nonce header in the error response.

HTTP/1.1 400 Bad Request
Content-Type: application/json
DPoP-Nonce: <fresh_dpop_nonce>

{
  "error": "use_dpop_nonce",
  "error_description": "Authorization server requires nonce in DPoP proof"
}

The wallet MUST: 1. Extract the new DPoP-Nonce from the error response header. 2. Regenerate the DPoP JWT using the new nonce value. 3. Retry the original request once with the updated DPoP JWT.

Do not restart the entire flow — the pre-authorized_code and access_token remain valid.

Security Considerations¶

The calling wallet is the same application throughout the flow — it sends the deeplink, registers as a Credential Manager provider, and performs the VCI exchanges. All obligations below apply to the single wallet implementation.

The wallet MUST:

• Validate the origin of the incoming Credential Manager request and reject requests from unexpected callers
• Retrieve and validate issuer metadata before initiating any network exchange
• Use HTTPS for all network exchanges
• Treat pre-authorized_code and access_token as secrets — never log them in plaintext
• Generate a fresh key pair for credential_response_encryption per issuance session and discard the private key after decryption
• Bind the credential to the wallet's key (via the device key in the MSO) and validate this binding after decryption
• Verify the issuer's COSE_Sign1 signature on the issued MSO and validate the document signer certificate chain against the France Identité IACA for the active environment
• Prevent replay attacks — validate c_nonce freshness and enforce jti uniqueness in DPoP JWTs
• Validate certificate chains in x5c before trusting a Client Attestation
• Validate Android Keystore attestation chains, roots, revocation status, and hardware/StrongBox security-level claims before relying on android_keystore_attestation
• Store issued credentials in encrypted storage

The wallet SHOULD:

• Verify that the France Identité app is installed and authentic before firing the deeplink
• Avoid leaking pre-authorized_code values through logs, logcat, or IPC
• Store the Credential Binding Key in the Android Keystore with hardware-backed protection; use StrongBox if available
• Discard the Ephemeral Session Key after each issuance session completes or fails

Android Integration Notes¶

Client Registration and Onboarding¶

Registration and onboarding for third-party wallet implementations is TBD. Contact the France Identité team to initiate the process.

The following information will be required or assigned:

Credential Manager Integration¶

See Step 2 — Credential Manager Request for the provider registration link and payload structure. The wallet does not need a custom intent filter to receive the credential request — delivery is handled through the Credential Manager service binding.

Deeplink — Sending¶

The wallet is the sender of the deeplink. No intent filter is required on the wallet side. The wallet constructs the France Identité deeplink URL and fires an ACTION_VIEW intent as described in Step 1 — Deeplink Invocation.

Out of Scope¶

The following OID4VCI features are not part of the current integration:

• Multiple credential configurations in a single request
• Deferred issuance
• Authorization code flow
• Batch credential issuance
• DID-based subject identifiers
• Credential refresh
• Credential status validation

Playground Trace Examples¶

The following examples are extracted from a playground issuance session on 2026-05-28. They are intended for implementers who need to compare their own traces against a known-good flow.

Opaque bearer values, compact JWTs, and compact JWEs are shortened where they are not useful to read inline. The credential response encryption private key is included only because it belongs to this expired playground trace and was used to decrypt that session response. Do not reuse it in an implementation.

{
  "challenge": {
    "request": {
      "timestamp": "2026-05-28T16:23:41.488Z",
      "method": "POST",
      "url": "/france-titres/oid4vci-16-2-13/challenge"
    },
    "response": {
      "timestamp": "2026-05-28T16:23:41.510Z",
      "status": 200,
      "body": {
        "attestation_challenge": "hEOhASagV4JQ0Uqc0Q5gryefi5ScjgJKWxpqGG-RWEACBR8szWiB9fya-KkGAyEbiWBnxo5XSumw3Zj3eZZpek8j7-DWMOZfPYkAsHFczNzjoikLN3tSc2Lwa0-VEndA"
      }
    }
  },
  "token": {
    "request": {
      "timestamp": "2026-05-28T16:23:41.726Z",
      "method": "POST",
      "url": "/france-titres/oid4vci-16-2-13/token",
      "headers": {
        "content-type": "application/x-www-form-urlencoded",
        "dpop": "<compact dpop+jwt>",
        "oauth-client-attestation": "<compact oauth-client-attestation+jwt>",
        "oauth-client-attestation-pop": "<compact oauth-client-attestation-pop+jwt>"
      },
      "body": {
        "grant_type": "urn:ietf:params:oauth:grant-type:pre-authorized_code",
        "pre-authorized_code": "w9HRltH_WKYtHHf2RttR_7U2-YcQ5fX7iokppzyZxZQ"
      }
    },
    "decoded_dpop": {
      "header": {
        "typ": "dpop+jwt",
        "alg": "ES256",
        "jwk": {
          "kty": "EC",
          "crv": "P-256",
          "kid": "1_6d99a524-75a4-489e-adfa-5a9bee92d049_fb0724f5-a5da-407c-ba6a-d84ecef67f20",
          "x": "tAHecxu06n_un6zR1gXJ0jasgUVRbpB-c0El3RUCqDs",
          "y": "NqQBi7iXlA1BmPjKZLxa28moF68e_6RUEXbCCIxTvQU"
        }
      },
      "payload": {
        "htm": "POST",
        "htu": "https://api.playground.france-identite.gouv.fr/poc/idakto/openid4vci/v2/token",
        "iat": 1779985421,
        "nonce": "hEOhASagV4JQNCbK1OXwxcPsLnHIULpEBxpqGG-RWEDuvKrd7iq53h9LqCXarknGzYioV-Me46vk54bnSpdPRXV5hnbIzF1IdTzj5O1SpGQaCkROqOrToNVK9vuseVQa",
        "jti": "40821509-1715-4b9a-b49c-8fd632dc5bcf"
      }
    },
    "response": {
      "timestamp": "2026-05-28T16:23:41.752Z",
      "status": 200,
      "body": {
        "access_token": "yRP5dc9cdfx4c_Ne8DZP9Uj4htaxUWJ05EFMFRWHIxA",
        "expires_in": 896,
        "token_type": "DPoP"
      }
    }
  },
  "nonce": {
    "request": {
      "timestamp": "2026-05-28T16:23:41.853Z",
      "method": "POST",
      "url": "/france-titres/oid4vci-16-2-13/nonce"
    },
    "response": {
      "timestamp": "2026-05-28T16:23:41.861Z",
      "status": 200,
      "body": {
        "c_nonce": "hEOhASagV4JQ_PV8-80xj556CJFQG4QEpBpqGG-RWECI21HpF8kSeufcFhLckHU7i7eE65ixQvgnTDjLPhnXA1n6KjLLiF1VtIwUqiLWrSXSBnDLOnz17UfC5nwwqPfV"
      }
    }
  },
  "credential": {
    "request": {
      "timestamp": "2026-05-28T16:23:42.191Z",
      "method": "POST",
      "url": "/france-titres/oid4vci-16-2-13/credential",
      "headers": {
        "authorization": "DPoP yRP5dc9cdfx4c_Ne8DZP9Uj4htaxUWJ05EFMFRWHIxA",
        "content-type": "application/jwt; charset=utf-8",
        "dpop": "<compact dpop+jwt>"
      },
      "body": "<encrypted compact JWE credential request>"
    },
    "decoded_dpop": {
      "payload": {
        "htm": "POST",
        "htu": "https://api.playground.france-identite.gouv.fr/poc/idakto/openid4vci/v2/credential",
        "ath": "8_VZ0r-vYFbfUwe79g0V6xhXXLmJps0D0lT6H8V8758",
        "iat": 1779985421,
        "jti": "7ffb5b21-7900-45aa-afa3-2e7799f137ac"
      }
    },
    "request_jwe_header": {
      "alg": "ECDH-ES",
      "enc": "A256GCM",
      "cty": "application/json",
      "kid": "ecdsap256",
      "epk": {
        "kty": "EC",
        "crv": "P-256",
        "x": "dACJxQoZdqqHW7Ngj-tFiNM33sCNbXy9EUjV-YnTHCo",
        "y": "rr8mXFB9ie0MmbMAsBhAbJV-H2QcbZNk4BHAKaySot0"
      }
    },
    "response": {
      "timestamp": "2026-05-28T16:23:42.267Z",
      "status": 200,
      "headers": {
        "content-type": "application/jwt"
      },
      "body": "<encrypted compact JWE credential response>"
    },
    "response_jwe_header": {
      "alg": "ECDH-ES",
      "enc": "A256GCM",
      "kid": "response_encryption_test_key",
      "epk": {
        "kty": "EC",
        "crv": "P-256",
        "x": "cLoReAr4360JdDZEDevgNTpEfr3HW7rlWbGk7nTPJ1I",
        "y": "LcxsJtrj20JcIcHZmP3WaLVuLTYOCn09nH85C_CAFdw"
      }
    }
  },
  "credential_response_encryption_public_key": {
    "kty": "EC",
    "crv": "P-256",
    "x": "TtTXFg3Dx0-TdOktImr31-bF12Ev9JIGszduZODq5g8",
    "y": "714EGSZv5ToUKVwq90UTmU8eja8xJI-u9OfU97k4wq4",
    "alg": "ECDH-ES",
    "kid": "response_encryption_test_key",
    "use": "enc"
  },
  "credential_response_encryption_private_key": {
    "kty": "EC",
    "crv": "P-256",
    "x": "TtTXFg3Dx0-TdOktImr31-bF12Ev9JIGszduZODq5g8",
    "y": "714EGSZv5ToUKVwq90UTmU8eja8xJI-u9OfU97k4wq4",
    "d": "2_uG1rJ3UgV6EhJHhqpIfKER3Fr2QECOIuNe6Uzdcdo"
  },
  "credential_request_encryption_public_key": {
    "kty": "EC",
    "crv": "P-256",
    "x": "cN9gxxCvgLIU7mmNxE1U4nj2mW6dLgGv8txj5NVvRB8",
    "y": "K_ATXIVyzRNAa9hCzJ5icXmotjXMLPjrN66OOMr9C9A",
    "alg": "ECDH-ES",
    "kid": "ecdsap256",
    "use": "enc"
  }
}

{
  "docType": "eu.europa.ec.av.1",
  "version": "1.0",
  "nameSpaces": {
    "eu.europa.ec.av.1": {
      "issuing_jurisdiction": "Gironde",
      "age_over_18": true,
      "age_over_21": true,
      "expiry_date": "2026-01-24T00:00:00Z",
      "issue_date": "2018-08-09T00:00:00Z",
      "issuing_authority": "France",
      "issuing_country": "FR"
    }
  },
  "issuerAuth": {
    "digestAlgorithm": "SHA-256",
    "validityInfo": {
      "signed": "2026-05-26T11:25:41Z",
      "validFrom": "2026-05-26T11:25:41Z",
      "validUntil": "2026-08-25T17:25:41Z"
    },
    "documentSignerCertificate": {
      "subject": "CN=DS, OU=0002 1300032621, O=Agence Nationale des Titres Sécurisés, C=FR",
      "issuer": "CN=Autorité de Certification France Identité IACA, OU=POUR QUALIFICATION UNIQUEMENT, OU=0002 1300032621, O=Agence Nationale des Titres Sécurisés, C=FR",
      "notBefore": "2026-03-04T13:58:07Z",
      "notAfter": "2027-06-04T12:58:07Z"
    },
    "deviceKeyInfo": {
      "deviceKey": {
        "kty": "EC2",
        "crv": "P-256",
        "x": "n7N9arHtxn5qvVwaRd1VIGUJ0JvxVNgERpEtO_Ey-TA",
        "y": "4jbQbUwrAoujuEQqqx6TQi8V1G0j5YrHiJDVGfzZZns"
      }
    }
  },
  "rawNameSpaceItems": {
    "format": "CBOR tag 24 encoded issuer-signed items",
    "count": 7
  }
}

Playground Certificates¶

Obtain the playground IACA certificate from the France Identité EUDIW Unfold Playground documentation. The wallet must configure this certificate as the trust anchor for MSO signature validation before verifying any issued credential.

References¶
